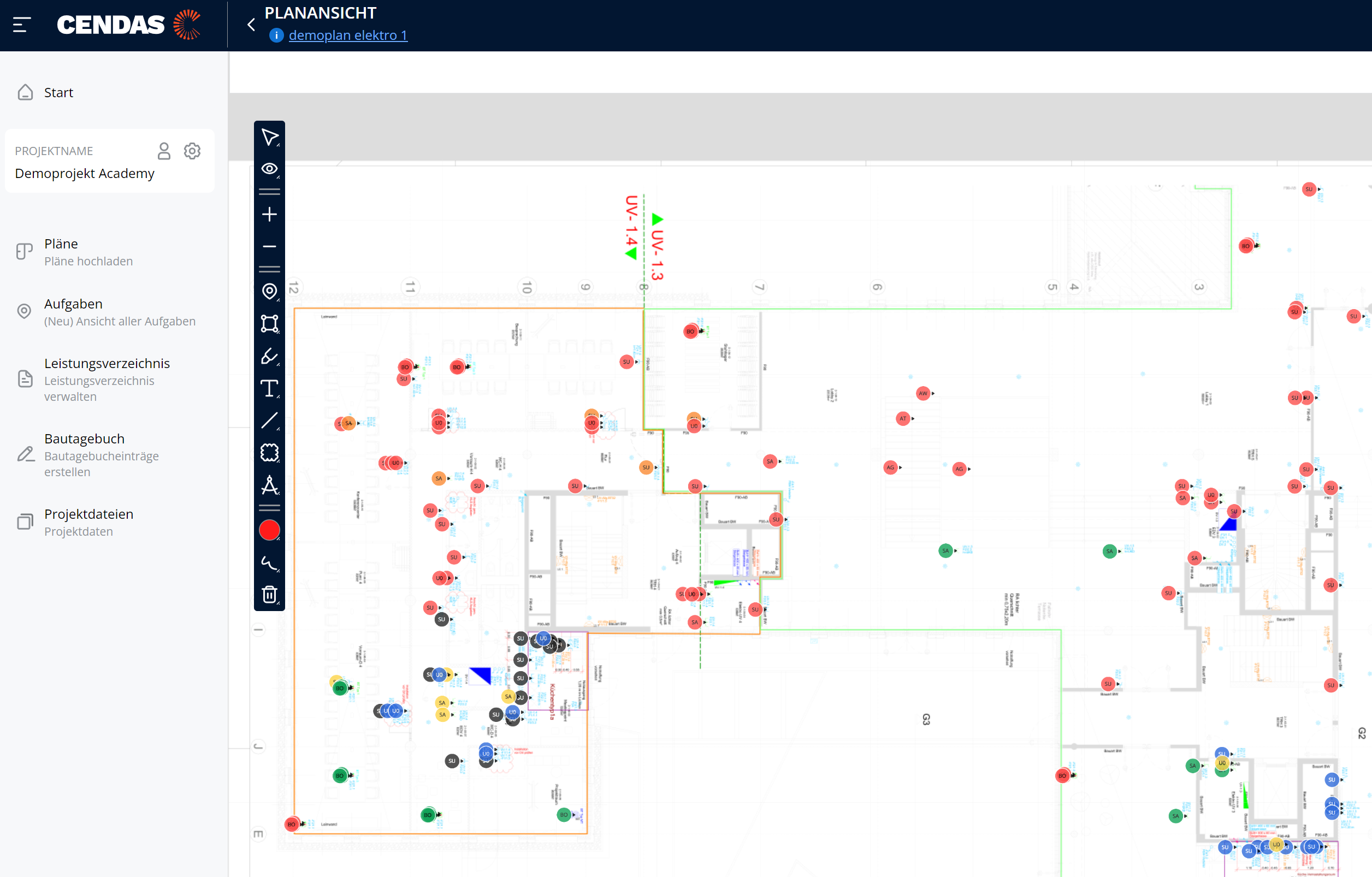

📌 CENDAS Plan View
Here you can work with the digital plans, including checking off tasks and adding comments and images if needed.
➡️ Indicate progress for individual components
To check off a task, open it by clicking its pin on the plan. You can mark the status of a work step as follows:
| Click once on the checkbox to mark a work step as completed. | |
| Click twice on the checkbox to indicate that this work step was not necessary. | |
| Click three times on the checkbox to indicate that this work step was not feasible (for example, due to a construction obstruction). The processing status is then blocked until the work is marked as completed or not necessary. |
➡️ Indicate progress for multiple components
To select multiple tasks at once, click the arrow icon in the toolbar and then on multi-select. Then define the area on the plan by clicking where the tasks should be selected.
Check off multiple components at the same time
In the side menu, all tasks grouped by components within the area you defined will be displayed. Tap the component for which you want to document construction progress and check off the corresponding work steps.
📣 Note: If the selected tasks of a component have different processing statuses, this will be illustrated by question marks in the checkboxes. To bring the tasks to the same processing status, you can overwrite the question marks by clicking them.
Edit multiple tasks simultaneously
You can also use the bulk edit function to assign a responsible person and a due date to the selected components.
➡️ Indicate progress for areas
If you have already created areas during plan preparation, you can retrieve the progress status of these areas by following these steps:
- Select the area you want to view and click on it.
- An overview will open showing all tasks within this area.
- You can also apply filters in this area to make the view clearer.
➡️ Add comments and images
To add a comment and/or an image to a task, open it by clicking its pin on the plan. Then expand the comments section. Enter your comment in the field and submit it by clicking the blue arrow next to the input field. To add an image, click the paperclip and open the image in the file explorer that appears. You can also add multiple images at once.
